Availability: 10 in stock

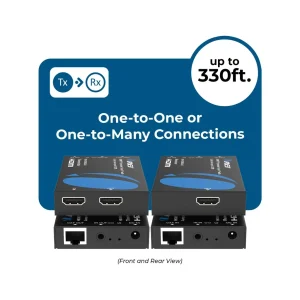

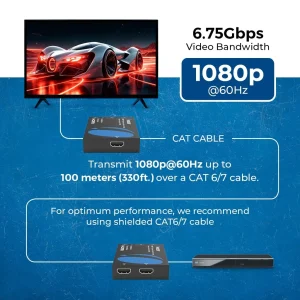

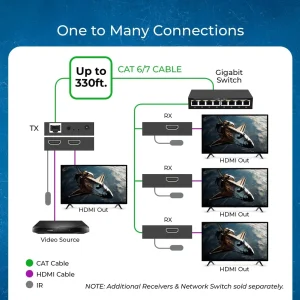

HD-EXM330-K is a reliable HDMI over IP extender designed for one-to-many distribution through a dedicated 1G or 2-layer switch. It supports HDMI 1.4 and HDCP 1.4 standards, transmitting Full HD 1080p@60Hz video signals up to 330 feet (100 meters) over a single CAT6 cable.
With a video bandwidth of 6.75Gbps, it ensures smooth and stable transmission across multiple displays.

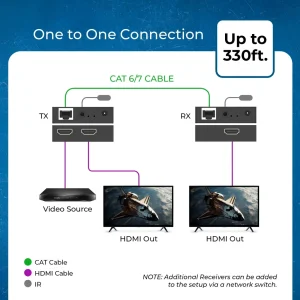

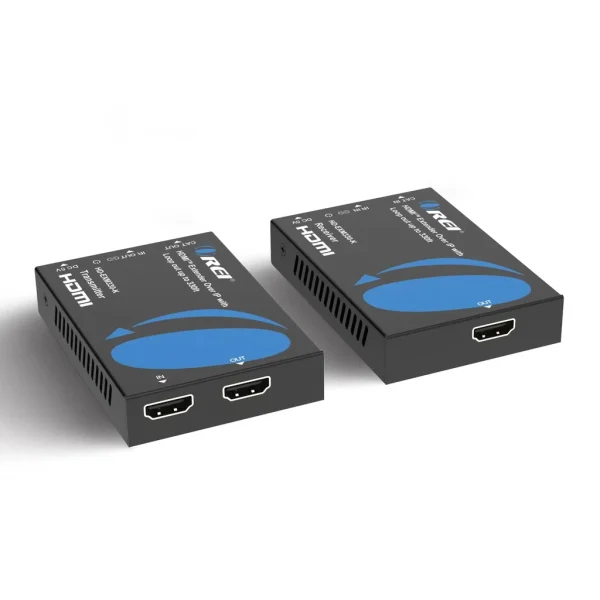

The transmitter unit features an HDMI loop output for connecting a local display, while uni-directional IR pass-through allows source control from the receiver location. Engineered for easy integration, this plug-and-play extender is ideal for commercial AV deployments and personal installations where extended range and scalability are essential.
Note: This device requires a dedicated network switch and does not function over an existing LAN.
[tab]
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × CAT [RJ45, 8-pin female] | ||
| CONTROL: | 1 × IR OUT [3.5mm Stereo Mini-jack] | |
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] |

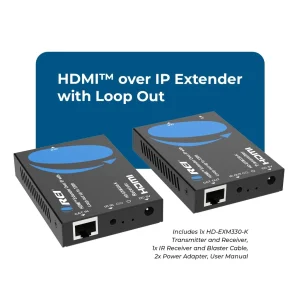

| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster cable |
| 1x IR Receiver cable |
| 2x Power Adapter |
| User Manual |
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
| 1080P@60Hz: | 330 Feet |
| Video Bandwidth: | 6.75Gbps |
| Video Resolutions: | Up to 1080p@60Hz |
| ARC/eARC: | No / No |
| CEC: | No |
| Transmission Technology: | Over IP, Ethernet |
| IR Control: | Uni-directional |
| PoC (Power over Cable): | No |
| RS-232: | No |
| USB Standard: | No |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | No / No / No |
| HDMI Audio Formats: | PCM 2.0ch |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Power Consumption: | TX: 1.5W (Max) & RX: 1.1W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |

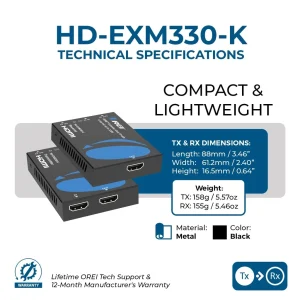

| Transmitter: | Length: | 88mm / 3.47in |
| Width: | 61.2mm / 2.41in | |
| Height: | 16.5mm / 0.65in | |
| Weight: | 158g / 5.57oz | |
| Receiver: | Length: | 88mm / 3.47in |
| Width: | 61.2mm / 2.41in | |
| Height: | 16.5mm / 0.65in | |
| Weight: | 155g / 5.47oz |
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
| 1-Year Manufacturer’s Warranty |
