1080p HDMI™ Extender – 130ft (cat6)-EX-130C

Name: 1080p HDMI™ Extender - 130ft (cat6)-EX-130C
SKU: SITE1-100006251
Price: 9.00 USD
Availability: InStock

Availability: 7 in stock

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: SITE1-100006251

CATEGORY: Cables & Adapters

Description

OREI 1080P HDMI Extender With POC Up To 130 Feet & EQ Switch with Adjustable Distance

Key Features:

HDMI 1.4 & HDCP 1.4 Compliant – Ensures reliable compatibility with Full HD content and protected sources.
Supports Video Resolutions up to 1080p@60Hz – Delivers clear, high-quality video performance.
Signal Extension up to 130 ft (40 m) – Transmits HDMI signals over a single CAT6/7 cable.
Power over Cable (PoC) – Powers both transmitter and receiver with a single adapter at the transmitter end.
7.1CH Digital Audio Support – Supports Dolby True HD and DTS-HD Master Audio formats for rich audio playback.
EQ Switch – Adjusts signal strength for optimal performance based on cable distance.

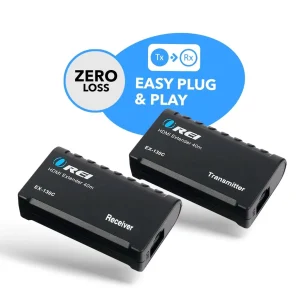

Compact Design – Space-saving and easy to install, ideal for tidy, plug-and-play setups.

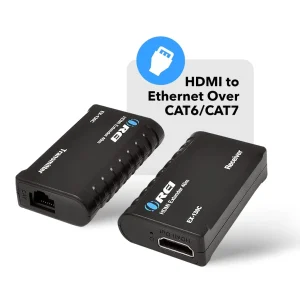

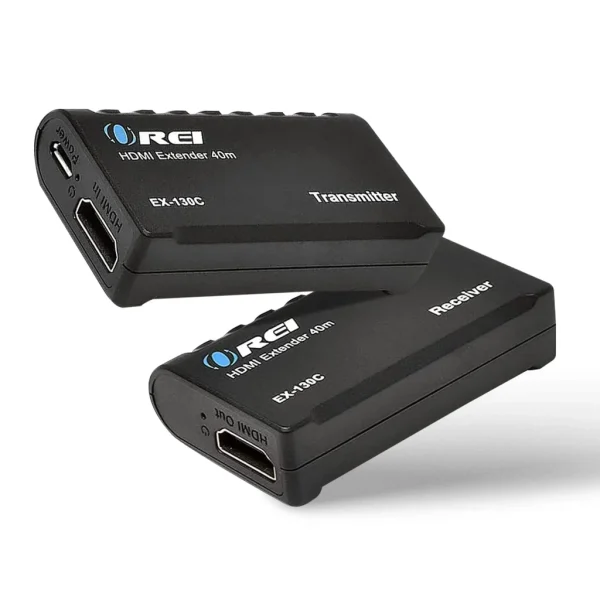

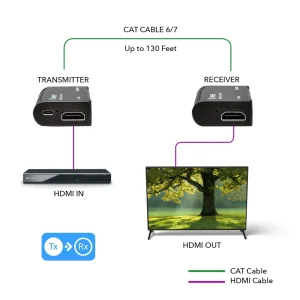

The EX-130C is a reliable HDMI extender designed to deliver high-definition AV signal transmission over medium distances. It supports video resolutions up to 1080p@60Hz and extends HDMI signals up to 130 feet (40 meters) over a single CAT6/7 cable.

Fully compliant with HDMI 1.4 and HDCP 1.4 standards, it maintains strong compatibility with Full HD media sources and displays.

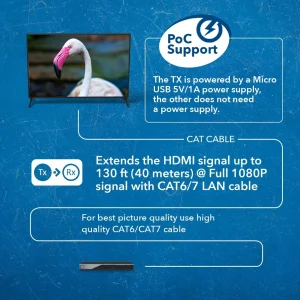

This unit features Power over Cable (PoC) technology, requiring only one power adapter at the transmitter end to operate both units. The EQ switch allows users to fine-tune signal performance based on cable length, ensuring stable transmission.

With support for advanced audio formats such as Dolby True HD and DTS-HD Master Audio, the EX-130C offers an efficient and compact solution for home entertainment setups where the display and source are far apart.

[summary]

Full HD HDMI extender over ethernet up to 130 feet.
Video resolutions up to 1080P@60Hz
One way Power over Cable funtionality with EQ switch for adjusting the distances

[/summary]

[tab]

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
	OUTPUT:	1 × CAT [RJ45, 8-pin female]
Receiver:	INPUT:	1 × CAT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]

PACKAGE CONTENTS

1x Transmitter

1x Receiver

1x USB cable

1x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

1080P@60Hz:

130 Feet

VIDEO OUTPUT

Video Bandwidth:	1.65Gbps
Video Resolutions:	Up to 1080p@60Hz

ADDITIONAL FEATURES

ARC/eARC:	No / No
CEC:	No
Transmission Technology:	Ethernet
IR Control:	No
PoC (Power over Cable):	Yes
RS-232:	No
USB Standard:	No
USB-C DP Alt Mode:	No
HDR10 / HDR10+ / Dolby Vision:	No / No / No

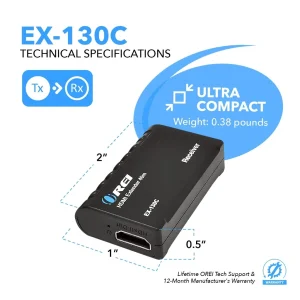

DIMENSIONS & WEIGHT

Transmitter:	Length:	65mm / 2.56in
	Width:	37.5mm / 1.48in
	Height:	16.5mm / 0.65in
	Weight:	22.5g / 0.79oz
Receiver:	Length:	65mm / 2.56in
	Width:	37.5mm / 1.48in
	Height:	16.5mm / 0.65in
	Weight:	22.3g / 0.79oz

PROPERTIES

Color:	Black
Housing:	Plastic Enclosure
Operation Temperature:	32 ~ 104°F / 0 ~ 40°C
Storage Temperature:	-4 ~ 140°F / -20 ~ 60°C
Operating Humidity:	20 ~ 90% RH (non-condensing)

WARRANTY

1-Year Manufacturer’s Warranty

[/tab]

[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: EX-130C

[/tab1]
